Unveiling the Baseus 45W GaN: A Next-Generation Fast Wall Charger for the Future

1. Introduction: The Evolution of Charging Technology

In the rapidly evolving world of consumer electronics, the demand for power delivery that is both efficient and compact has never been higher. As smartphones become more powerful, the need for a reliable fast wall charger becomes a daily necessity for users worldwide. Baseus, a leader in the charging accessory market, has introduced its latest innovation: the Baseus 45W GaN Charger (Model E01234). This device is not just another brick in the wall; it is a forward-thinking solution designed to support the latest standards, including the cutting-edge PD3.2 protocol.

While many users often carry a bulky usb multi charger to handle various devices, the trend is shifting towards ultra-compact, high-power single units that can handle specific high-demand tasks efficiently. The Baseus 45W model perfectly exemplifies this shift, offering a miniaturized design without compromising on the raw power needed for the upcoming iPhone 17 series and other flagship devices. This review delves deep into the engineering marvel that makes this fast wall charger a top-tier choice for tech enthusiasts.

2. Design and Build Quality: Compactness Redefined

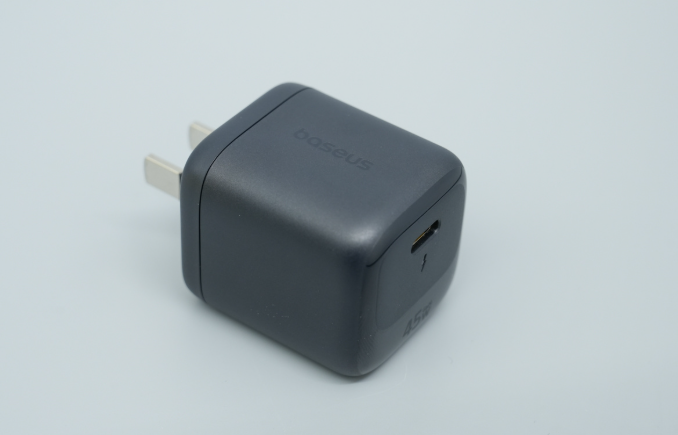

Upon unboxing, the Baseus 45W charger immediately impresses with its size. Measuring just 39.8mm in length, it is significantly smaller than traditional chargers of equivalent power. The casing is constructed from fire-retardant PC material with a sophisticated matte black finish that resists fingerprints and scratches. A unique design element is the "collision" of glossy and matte textures on the top surface, framing the orange USB-C port, a lightning logo, and the "45W GaN" inscription.

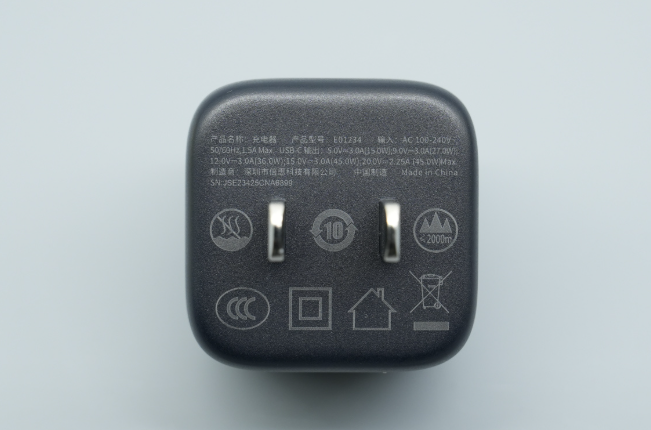

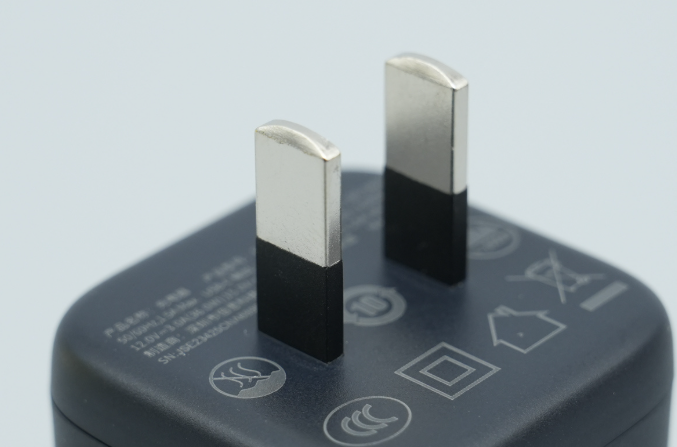

For travelers who might usually rely on a heavy usb multi charger, replacing it with this lightweight (approx. 60g) unit can significantly reduce carry-on weight. The folding prongs (conforming to new national standards) further enhance its portability, preventing it from scratching other items in your bag. Whether you are commuting or flying, having a fast wall charger this compact ensures you are always power-ready without the bulk.

3. Advanced Protocols: More Than Just a Fast Wall Charger

The true value of this device lies in its internal protocol support. Unlike a basic adapter, this fast wall charger is a versatile powerhouse. Our testing revealed support for a wide array of protocols including UFCS, QC3+/4+, FCP, SCP, AFC, PPS, and the highly anticipated PD3.2. This broad compatibility means it acts as a universal solution, rivaling the versatility typically associated with a complex usb multi charger hub, but in a much smaller form factor.

Specifically, the inclusion of PD3.2 with SPR AVS (Adjustable Voltage Supply) voltage gears (9-20V) allows for precise power delivery. This is crucial for the iPhone 17 series, enabling the device to negotiate the optimal charging speed (up to the anticipated 40W dynamic fast charge) while minimizing heat generation. Furthermore, the support for PPS (Programmable Power Supply) ensures that flagship Samsung and Xiaomi phones can also utilize this fast wall charger for their respective proprietary fast charging speeds.

4. Teardown Analysis: The Input Stage

To understand why this fast wall charger performs so well, we must look inside. The teardown reveals a highly organized PCBA module utilizing a high-frequency QR power supply architecture. The input stage features a time-delay fuse from Lanbao (3.15A 250V) and an NTC thermistor to suppress inrush current—safety features often skipped in cheaper alternatives.

EMI (Electromagnetic Interference) filtering is handled by a common-mode choke wound with double wires. A bridge rectifier (TMBFR410A) converts the AC to DC, which is then smoothed by high-voltage electrolytic capacitors from Wanjinyuan (400V 22μF). These high-quality components ensure that the power fed into the main switching circuit is stable, a critical factor for any high-performance fast wall charger intended to protect expensive smartphones.

5. The GaN Advantage: Huayuan Zhixin Technology

The secret behind the miniaturization of this fast wall charger is the Gallium Nitride (GaN) technology. Baseus has employed the HYC3687HR02-R chip from Huayuan Zhixin. This is not just a simple switch; it is a "three-in-one" controller integrating PWM control, a Sense Fet, and the GaN power device itself into a single package.

By integrating the 700V DGaN (Depletion-mode GaN), the chip achieves high-voltage startup and eliminates the need for external current sampling resistors. This lossless current detection technology significantly boosts efficiency. For the end-user, this means the fast wall charger stays cooler and charges faster than silicon-based predecessors. The DFN6x8mm package of the chip also aids in heat dissipation, ensuring sustained performance during long charging sessions, a feature sometimes lacking in a crowded usb multi charger where heat accumulation can be an issue.

6. Output Regulation and Smart Control

On the secondary side of the circuit, the synchronous rectification is managed by the Huayuan Zhixin HY923 controller. This digital adaptive controller supports multiple operating modes (DCM/CCM/QR) and drives an Allpower APG056N10G MOSFET. This combination ensures that the conversion from high voltage to the low voltage required by your phone is extremely efficient, reducing energy waste.

The "brain" of this fast wall charger is the HY5312 protocol chip. Certified for USB PD3.2, this chip is responsible for the intelligent communication between the charger and your device. It identifies whether you have plugged in an iPhone, a Samsung, or a laptop, and adjusts the power output accordingly. It also features built-in temperature control mechanisms. While a usb multi charger might split power across ports, this dedicated unit focuses all its intelligence on delivering the cleanest, fastest charge to a single device, ensuring safety and longevity for your battery.

7. Conclusion: The Ideal Charging Companion

The Baseus 45W GaN charger stands out as a premier example of modern power electronics engineering. By utilizing a full suite of Huayuan Zhixin power solutions, Baseus has created a product that is robust, efficient, and incredibly small.

For consumers, the choice is clear. If you need a dedicated power source that supports the latest PD3.2 standard for the iPhone 17 and offers universal compatibility for Android devices, this fast wall charger is an excellent investment. While a usb multi charger has its place for charging many low-power gadgets at once, the Baseus 45W provides the dedicated high-speed throughput required for today's flagship smartphones. Its solid build quality, verified by the internal component selection, makes it a reliable accessory for years to come.
