In-Depth Review of UGREEN 65W 3-in-1 Hybrid Power Bank: Engineering, Specs, and Teardown

As the boundaries between work and travel continue to blur, the demand for versatile charging solutions has skyrocketed. The market has seen a significant shift towards "hybrid" devices that combine the functionality of a wall adapter, a portable battery, and a built-in cable into a single unit. UGREEN, a renowned player in the accessories market, has recently introduced its 65W 3-in-1 Power Bank (Model PB512). This device promises to simplify the "digital nomad" lifestyle by allowing users to carry just one device for all their power needs.

While many hybrid devices compromise on power output to save space, UGREEN aims to deliver a no-compromise experience. By offering substantial power delivery, it functions effectively as a laptop charger while retaining portability. This article provides a comprehensive analysis of the PB512, examining its exterior design, charging protocols, and internal engineering. We will explore how it performs as a 45w usb c charger for laptops and a fast-charging hub for smartphones, backed by a detailed teardown of its internal components.

1. Unboxing and Aesthetic Design

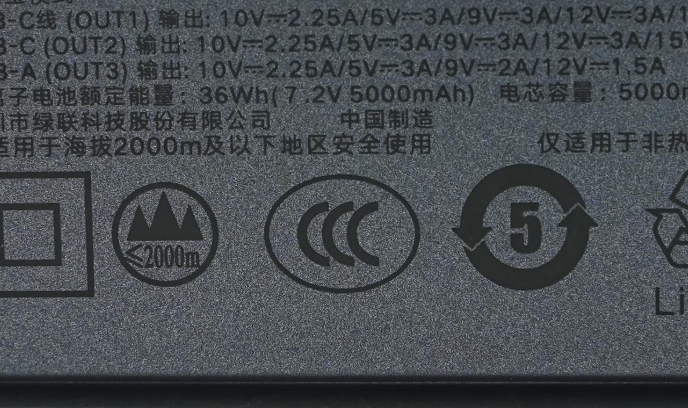

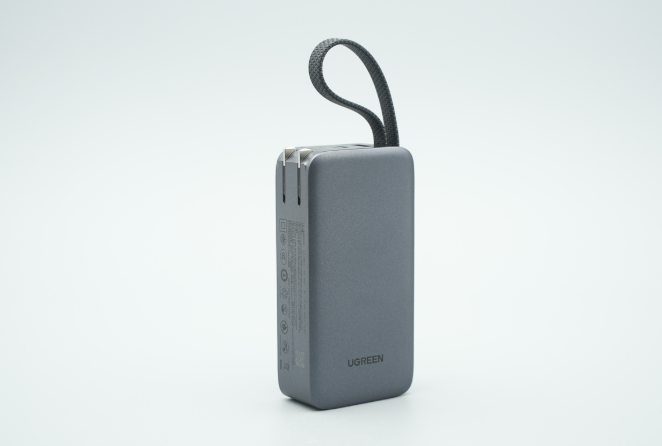

The UGREEN 65W 3-in-1 device arrives in clean, white packaging that highlights its core specifications: 10000mAh capacity and 65W output. Upon unboxing, the user is presented with a device that exudes a professional, business-oriented aesthetic. The chassis is finished in a dark grey matte texture, which provides a premium tactile feel while being resistant to fingerprints and scratches—a crucial feature for a device meant to be tossed into backpacks.

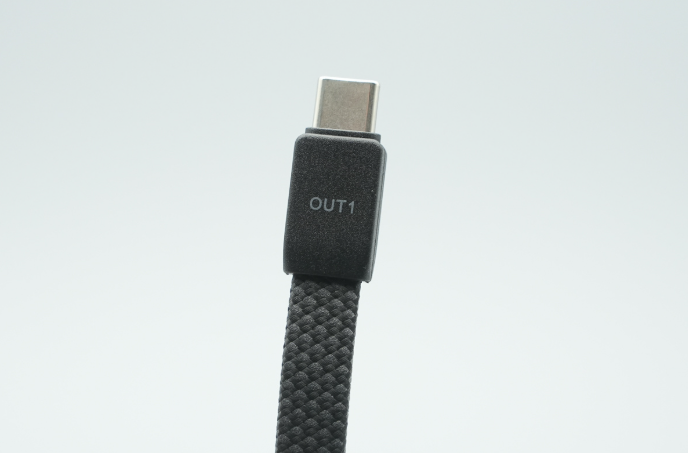

One of the standout design features is the integration of the USB-C cable. Unlike standard detachable cables, this flat, braided cable is anchored to the device and doubles as a carrying strap via a magnetic latch. This clever engineering ensures the user never forgets their cable. The device measures approximately 120mm in length and weighs around 318g. While substantial, it is compact enough to replace a separate brick and power bank. The foldable AC prongs further enhance its portability, preventing them from snagging on other items in a bag.

2. Charger Mode: A High-Performance 45W USB C Charger

When plugged into a wall outlet, the device operates in "Charger Mode," unlocking its full potential. In this state, it supports a total output of 65W. This is significant because it allows the device to function as a fully capable 45w usb c charger (and higher) for ultrabooks like the MacBook Air, Dell XPS, or various Chromebooks.

Many hybrid power banks often throttle their wall-charging speeds, but the PB512 maintains high efficiency. For users who carry a laptop and a phone, this single unit replaces the bulky stock brick. The USB-C built-in cable and the additional USB-C port can both negotiate high voltage requirements. Whether you are at a coffee shop or a hotel desk, having a reliable 45w usb c charger integrated into your battery pack ensures your laptop stays powered without needing extra adapters.

3. Protocol Support and the Advantage of a PPS Charger

In the modern charging landscape, raw wattage isn't the only metric that matters; protocol support is equally vital. Our testing revealed that the UGREEN PB512 is a highly compatible pps charger (Programmable Power Supply). PPS is an advanced standard within the USB PD 3.0 framework that allows for dynamic voltage and current regulation.

Why is a pps charger important? Modern flagship phones, particularly from Samsung (like the Galaxy S series) and Google (Pixel series), require PPS to achieve their maximum charging speeds while minimizing heat generation. The UGREEN PB512 supports a specific PPS range of 3.3-11V at 4.5A. This granular control over voltage means the charger can communicate with the phone to deliver the exact amount of power needed, reducing energy loss and keeping the device cool. This makes it a future-proof investment for users who upgrade their smartphones frequently.

4. Power Bank Mode: Versatility on the Go

When unplugged from the wall, the device switches to "Power Bank Mode." Powered by its internal 10000mAh battery, the maximum output adjusts slightly but remains robust. Even in this battery-only mode, it can deliver up to 45W via the USB-C ports. This effectively makes it a portable 45w type c charger that can extend the life of a laptop during a commute or flight.

For smartphone users, the transition is seamless. We tested the device with an iPhone 17 Pro Max, and it consistently initiated fast charging. The inclusion of the USB-A port also ensures backward compatibility for older devices or wearables that do not yet utilize USB-C. The intelligent power distribution system ensures that even when multiple ports are in use, the device prioritizes safety and efficiency.

5. Internal Architecture: The Stacking Strategy

To understand how UGREEN managed to fit high-performance components into a compact shell, we performed a teardown. The internal structure utilizes a sophisticated stacked design. The bottom section houses the battery pack, consisting of two 21700 lithium-ion cells. These cells are known for their high energy density compared to traditional polymer packs.

Above the battery sits the PCBA (Printed Circuit Board Assembly) module. UGREEN has employed a plastic isolation frame to separate the high-voltage AC components from the low-voltage DC battery section. This physical separation is critical for safety. Furthermore, the extensive use of white potting glue throughout the chassis not only aids in heat dissipation but also provides shock absorption, protecting the internal components from drops and impacts.

6. AC-DC Conversion: The Power of GaN

The secret behind the device's ability to act as a compact 45w usb c charger lies in its use of Gallium Nitride (GaN) technology. The teardown revealed the presence of the Zhirong SW1125P chip. This "All-in-One" GaN chip integrates the 650V GaN switch, reducing the physical size of the transformer and increasing efficiency.

GaN semiconductors conduct electrons more efficiently than silicon, resulting in less energy lost as heat. This allows the components to be packed closer together without overheating. The SW1125P operates in a high-frequency quasi-resonant mode, which further optimizes the power conversion process. This chip is the engine that allows this hybrid device to perform on par with dedicated wall chargers.

7. DC-DC Management and Safety Systems

Managing the power flow between the wall, the battery, and the device requires complex logic. This is handled by the Zhirong SW7201, a bidirectional synchronous buck-boost controller. This component manages the charging of the internal batteries when plugged into the wall and the discharging of power to devices when mobile.

Safety is paramount in a device that handles high voltage. The teardown exposed multiple NTC (Negative Temperature Coefficient) thermistors placed strategically near the transformer and battery cells. These sensors monitor temperature in real-time. If the heat exceeds a safety threshold, the system throttles performance or shuts down to prevent damage. This robust thermal management makes it a safe 45w type c charger for overnight usage.

8. Battery Cells and Longevity

The energy storage is provided by two Sunpower INR21700-5000 cells. These 21700-sized cylindrical cells are an upgrade over the older 18650 standard, offering better capacity-to-size ratios. With a combined capacity of 10000mAh (36Wh), the device stays under the limit for airline carry-on restrictions, making it travel-friendly.

The battery pack is reinforced with "barley paper" insulation and additional structural ribs in the casing to prevent puncture or deformation. The connection between the battery and the motherboard utilizes thick nickel strips to handle high currents, ensuring that the pps charger capabilities are not bottlenecked by internal resistance.

9. Conclusion: The Ultimate Travel Companion

The UGREEN 65W 3-in-1 Power Bank (PB512) represents a mature evolution of the hybrid charging category. It successfully bridges the gap between a high-speed wall adapter and a high-capacity portable battery. By utilizing advanced GaN components and intelligent protocol chips, it serves as a reliable 45w usb c charger for laptops and a precise pps charger for flagship phones.
