Inside the Baseus 100W Mini GaN Charger: A Deep Dive Teardown of the 3D Stacking Revolution

The Evolution of High-Power Adapters: A Deep Dive into the 100W GaN Revolution

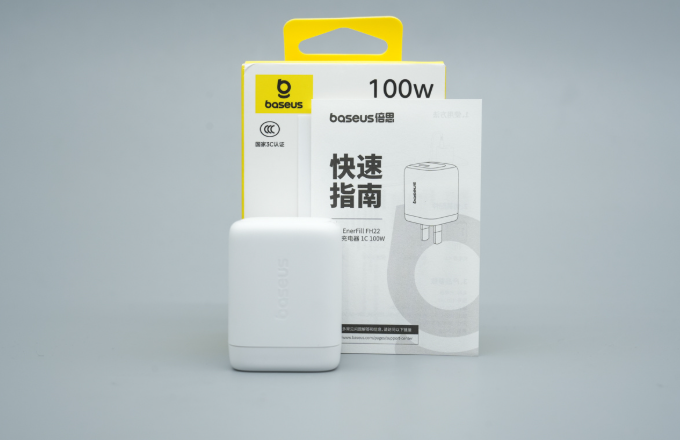

In recent years, the global consumer electronics market has witnessed a massive shift towards highly compact, maximum-efficiency power solutions. The newly released Baseus EnerFill FH22 100W Gallium Nitride charger represents a significant milestone in this evolution, setting an entirely new industry benchmark for minimal volume and maximum power output. By utilizing a cutting-edge 3D stacking architecture, this product achieves an astonishing 65 percent reduction in overall size compared to traditional 100W adapters. This perfect equilibrium between extreme daily portability and robust, high-wattage performance is what today’s tech-savvy consumers actively demand. From a professional B2B supply chain perspective, such relentless innovations are rapidly reshaping our industry standards. Global brands are constantly seeking a reliable USB-C wall charger supplier who can consistently deliver this level of miniaturization without compromising on safety or sustained output. This model proves that carrying bulky laptop chargers is firmly a thing of the past.

Minimalist Design Aesthetics Meeting Practical Everyday Portability

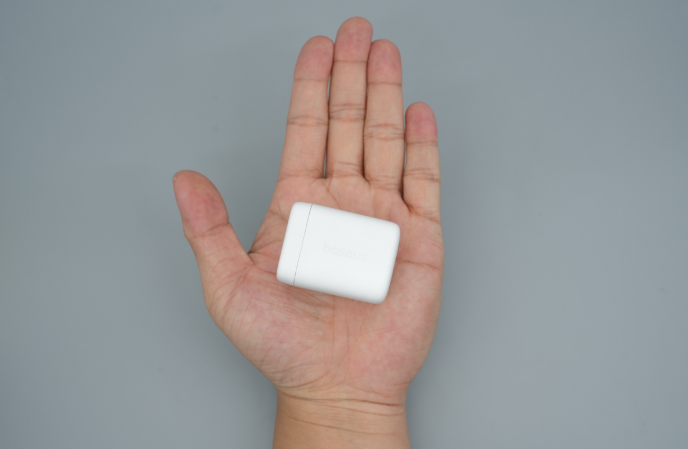

When meticulously evaluating premium electronic accessories, physical appearance, tactile feel, and overall user experience are just as critical as internal electrical specifications. This 100W GaN charger strictly adheres to an intelligent design philosophy that equally prioritizes visual aesthetics and practical, everyday utility. It features a highly sleek, matte-finished outer housing that not only feels exceptionally premium to the touch but also actively resists unsightly fingerprints and daily superficial wear. Furthermore, the strategic inclusion of durable, foldable plug pins is a highly practical design choice. This essential feature ensures that the metal plug does not accidentally scratch other sensitive devices when securely stored in a backpack or laptop case during extensive travel. Measuring merely around 48.22mm by 36.25mm by 36.32mm and weighing a highly negligible 107.7 grams, this incredibly dense charger comfortably rests in the palm of a hand. For busy professionals frequently on the move, this remarkably compact form factor entirely eliminates the physical burden of carrying heavy power bricks.

Comprehensive Fast-Charging Protocol Compatibility for Seamless Integration

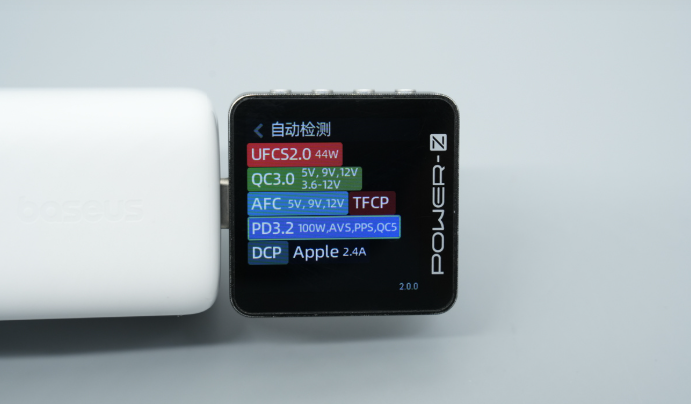

In our modern digital era where consumers typically operate multiple smart devices spanning vastly different technological ecosystems, universal charging compatibility is absolutely non-negotiable. This 100W GaN adapter excels remarkably in its output performance, easily and consistently supporting full-power 100W continuous delivery. What truly sets it apart from standard market offerings is its extensive, deeply integrated support for a wide multitude of fast-charging protocols. Extensive testing with professional diagnostic equipment reveals flawless compatibility with PD3.2, PPS, AVS, QC5, AFC, and proprietary standards. Additionally, it provides robust support for the emerging UFCS 2.0 universal fast charging protocol, featuring multiple precisely controlled fixed voltage tiers. This technical versatility means it can effortlessly adapt to rapidly charge MacBooks, Android smartphones, tablets, and modern thin-and-light laptops. Sourcing highly versatile products like this from a top-tier USB-C wall charger supplier is absolutely crucial for ambitious brands offering all-in-one charging solutions.

Innovative 3D PCBA Stacking Architecture and Extreme Space Utilization

The core technological secret behind the astonishingly small physical footprint of this 100W fast charger lies entirely in its revolutionary internal engineering. Upon professionally disassembling the sealed unit, it becomes immediately evident that hardware engineers have masterfully utilized every single millimeter of available internal space. The complex internal structure strategically employs a highly efficient multi-board 3D stacking design, cleanly separating the main underlying power motherboard from the lateral input processing sub-board. This highly deliberate architectural approach allows for the incredibly dense packing of high-performance electrical components without causing detrimental electromagnetic interference or dangerous internal arcing. The space-saving placement of the primary USB-C output receptacle, advanced synchronization controllers, and protocol chips demonstrates a supreme level of manufacturing precision. Such dense, calculated integration is exactly the driving force propelling the future of consumer power electronics, continuously pushing mechanical boundaries.

Premium Core Internal Components: Dongke GaN and Ismartware Chips

Any professional adapter's long-term reliability and daily energy efficiency are fundamentally dictated by the inherent quality of its internal silicon architecture. This specific model boldly integrates top-of-the-line components, most notably the advanced Dongke DK8712BD GaN power management integrated circuit. Based directly on a sophisticated asymmetrical half-bridge architecture, this densely integrated chip securely houses two high-performance Gallium Nitride power tubes. It flawlessly supports exceptionally high switching frequencies while miraculously maintaining ultra-low standby power consumption. It efficiently achieves zero-voltage switching, thereby drastically reducing wasted energy loss and lowering mechanical component stress. On the secondary side, a dedicated Dongke synchronous rectification controller further boosts system efficiency, acting as a vastly superior alternative to traditional Schottky diodes. For comprehensive protocol management, the renowned Ismartware SW2325P chip takes absolute charge, offering a high-precision digital-to-analog converter and deeply integrated safety protocols. This powerful combination of premium circuits ensures maximum energy conversion and highly stable power delivery.

Superior Thermal Management and Enhanced Mechanical Durability

Effective heat dissipation naturally remains the single greatest engineering challenge when attempting to cram 100W of raw electrical power into a miniature, pocket-sized chassis. To aggressively combat this physical reality, the charger meticulously employs an extensive, highly advanced thermal management system. The entire internal PCBA module is heavily encapsulated in a premium, highly specialized gray thermal potting compound. This thermally conductive compound deeply infiltrates microscopic crevices between internal components, effectively transferring dangerous localized heat away from the core processing chips directly to the outer plastic shell for rapid environmental dissipation. Moving beyond mere thermal regulation, this solid potting treatment significantly enhances the overall mechanical strength and structural integrity of the internal assembly. It provides truly exceptional shock absorption and professional-grade drop resistance. Coupled tightly with high-grade solid filtering capacitors and fast-acting thermal protectors, the charger guarantees highly stable, completely low-temperature fast charging.

The Strategic Importance of Choosing a Reliable Manufacturing Partner

The meticulous attention to detail, highly advanced material selection, and rigorous international safety certifications visibly observed in this comprehensive product teardown highlight the profound complexities of modern power adapter manufacturing. For ambitious global retail brands, dynamic e-commerce sellers, and large-scale distributors, successfully navigating this complex hardware landscape strictly requires partnering with a technically proficient USB-C wall charger supplier. A truly proficient manufacturing supplier provides immediate access to cutting-edge GaN technology and automated assembly lines while rigidly ensuring strict quality control and full compliance with international safety standards. Industry-leading products clearly demonstrate that achieving the perfect synergy of extreme physical miniaturization, high power output, and uncompromising consumer safety is entirely possible when heavily backed by robust R&D capabilities. As the global consumer market relentlessly demands smaller and faster charging solutions, strategically aligning with an expert supplier remains the most critical strategic move for sustainable business success.
