Baseus 140W Smart Digital Display GaN Wall Charger: A Comprehensive Review of the Versatile USB-C Powerhouse

Baseus’s new 140W Smart Digital Display GaN Charger has attracted wide attention. As the brand’s first fast‑charging product equipped with the Sky Dome Intelligent Display System, it not only achieves full visualization of charging data such as charging power, current distribution, and temperature control status, but also pioneers an intelligent charging summary function, allowing users to easily grasp charging duration and peak power, bringing a brand‑new intelligent interactive experience. This 5v usb c charger‑compatible powerhouse also serves as a versatile usb c and usb wall charger, making it a one‑stop solution for all your charging needs.

This charger also boasts high‑performance fast‑charging capabilities, featuring a 3C1A four‑port design. It not only supports a maximum PD3.1 fast‑charging output of 140W but also is compatible with Xiaomi’s 120W Surge Fast Charge. While meeting the simultaneous charging needs of a full range of devices such as laptops, tablets, and mobile phones, it also provides special adaptation for Mi‑series user devices, maximizing compatibility. Whether you’re using a 5v usb c charger for low‑power gadgets or a usb c and usb wall charger setup for multiple devices, this charger handles it all with ease.

In addition, the product is equipped with an advanced GaN solution and Baseus’s self‑developed BCT temperature control system. While greatly optimizing the product size, it achieves stable power output without dropping and continuous heat dissipation and cooling, perfectly balancing safe and efficient fast charging with a compact and portable design. As a multi‑functional 5v usb c charger and a reliable usb c and usb wall charger, it excels in both performance and portability. Let’s take a detailed look at this powerful product below.

Unboxing: Texture Shines Through in Details

The front of the packaging box clearly prints the Baseus brand logo, product name, appearance illustration, and core selling points, intuitively conveying the product’s key information. As a high‑end 5v usb c charger and a feature‑packed usb c and usb wall charger, the packaging immediately highlights its premium positioning.

The back of the box labels the product’s applicable carrying scenarios, internal structure diagram, and detailed parameter information, helping users understand the product’s compatibility in advance. Whether you plan to use it as a standalone 5v usb c charger or a multi‑device usb c and usb wall charger, the packaging provides all the necessary details.

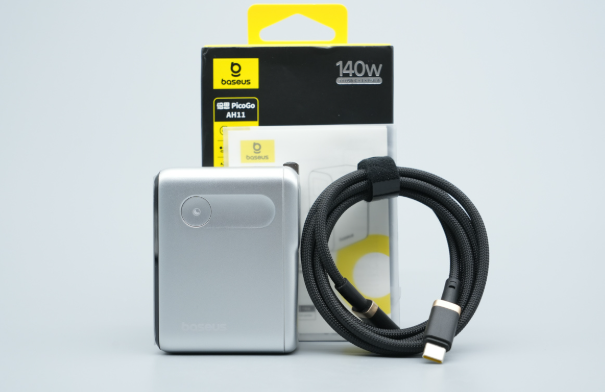

The parameter information on the box will be further explained in detail in conjunction with the actual product later. First, let’s take a look at what’s inside the package. The package includes the charger, a data cable, and a user manual, with complete accessories. Both the charger and cable are designed to work seamlessly as a 5v usb c charger and a usb c and usb wall charger combination.

The included cable is a USB‑C to USB‑C braided cable, adopting a classic black color scheme. It offers stronger wear resistance and durability, and is not easy to get dirty, making daily use more worry‑free. This cable is an essential part of the 5v usb c charger experience and complements the usb c and usb wall charger setup perfectly. The cable terminal housing features a frosted finish, with the Baseus brand logo and “240W” printed on the front and back respectively, and a rose‑gold decorative ring at the end, giving the whole cable a very refined look with excellent attention to detail. When paired with the charger, it forms a high‑performance 5v usb c charger and a stylish usb c and usb wall charger solution. Actual measurement shows that the data cable is approximately 153cm long. The relatively long length can meet charging needs in different scenarios, providing greater freedom of use. Whether you’re using it with a 5v usb c charger for a single device or as part of a usb c and usb wall charger setup for multiple gadgets, the long cable adds convenience.

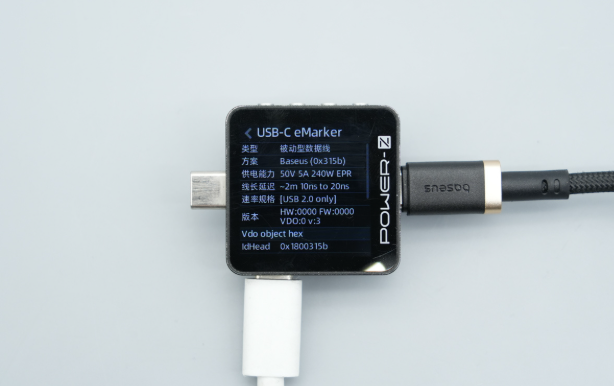

Testing with the ChargerLAB POWER‑Z KM003C shows that the data cable has a built‑in E‑Marker chip, with a power transmission capability of up to 50V 5A and a data transmission capability of USB 2.0 standard, balancing both charging and basic data transmission needs. This makes it an ideal companion for both a 5v usb c charger and a usb c and usb wall charger.

Product Appearance and Details: Exquisite and Portable

The Baseus 140W Smart Digital Display GaN Charger uses a PC flame‑retardant plastic shell. The main body of the charger is painted in silver gray, while the black shell at the output end adopts a glossy finish. The combination of the two materials and colors results in an outstanding appearance. As a modern 5v usb c charger and a sleek usb c and usb wall charger, it looks great on any desk.

The front and back of the body adopt an ergonomic micro‑groove design, which greatly improves the comfort and convenience during plugging and unplugging. The Baseus brand logo is also printed on the lower part of the front, enhancing brand recognition. This thoughtful design applies to both its role as a 5v usb c charger and a usb c and usb wall charger. A function button is built into the groove area, which can realize operations such as screen off, interface switching, and angle adjustment, with practical functions and convenient operation. Whether you’re using it as a simple 5v usb c charger or a multi‑port usb c and usb wall charger, the button enhances usability.

The other side of the body is printed with “140W GaN”, directly indicating its 140W power specification and GaN core material, with key information clearly visible at a glance. This makes it easy to identify as a high‑power 5v usb c charger and a capable usb c and usb wall charger. One side of the shell is marked with complete product parameter information, and the area corresponding to the pins specially adopts a pneumatic ripple heat dissipation microstructure design, which can effectively increase air flow rate, accelerate heat diffusion, and improve heat dissipation efficiency. Efficient heat dissipation is crucial for both a 5v usb c charger and a usb c and usb wall charger to ensure stable performance.

Key Parameter Explanation

Product Model: E01207

Input: 200‑240V~50/60Hz 2A Max

Single‑Port Output:

USB‑C1/C2: 9V3A, 12V3A, 15V3A, 20V6A, 28V5A

USB‑C3: 9V3A, 12V3A, 15V3A, 20V5A

USB‑A: 9V3A, 12V2.5A, 20V1.5A, 10V2.25A, 11V4A

With its wide voltage and current range, it functions excellently as both a 5v usb c charger and a multi‑voltage usb c and usb wall charger.

Dual‑Port Output:

USB‑C1 + USB‑C2: 140W Max

USB‑C1/C2 + USB‑C3: 140W Max

USB‑C1/C2 + USB‑A: 134W Max

USB‑C3 + USB‑A: 24W Max

These dual‑port configurations make it a flexible 5v usb c charger and a powerful usb c and usb wall charger for simultaneous charging.

Three‑Port Output:

USB‑C1 + USB‑C2 + USB‑C3/USB‑A: 140W Max

USB‑C1/C2 + USB‑C3 + USB‑A: 124W Max

Even with three devices connected, it still performs reliably as a 5v usb c charger and a multi‑device usb c and usb wall charger.

Four‑Port Output:

USB‑C1 + USB‑C2 + USB‑C3 + USB‑A: 134W Max

With four ports in use, it remains a capable 5v usb c charger and a versatile usb c and usb wall charger. The product has passed CCC certification, providing more assurance in terms of quality and safety. Safety certification is essential for any 5v usb c charger or usb c and usb wall charger.

The charger is equipped with semi‑encapsulated foldable pins that meet the new national standard. They not only greatly improve portability but also effectively avoid accidental contact risks, making daily storage more convenient. This portability is a big plus for both a 5v usb c charger and a usb c and usb wall charger used on the go.

The output end is equipped with four USB ports (3C1A), meeting the needs of charging multiple devices at the same time. The high‑brightness screen above adopts UV reinforcement technology, which not only presents clear and bright images but also has scratch resistance, wear resistance, and is not easy to leave marks, ensuring that it can still maintain a good condition after long‑term use. A clear display is very helpful for monitoring the status of both a 5v usb c charger and a usb c and usb wall charger.

Intelligent Display Function Experience: More Intuitive Data Visualization

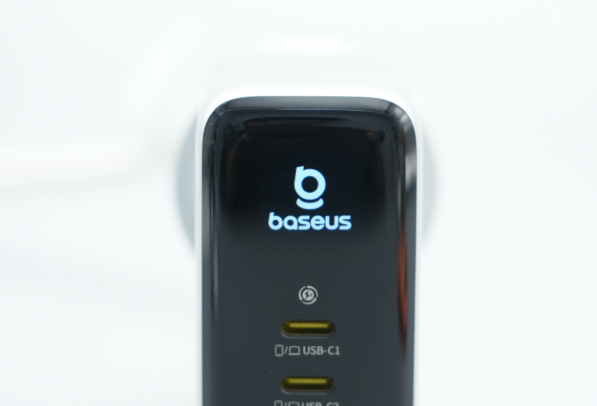

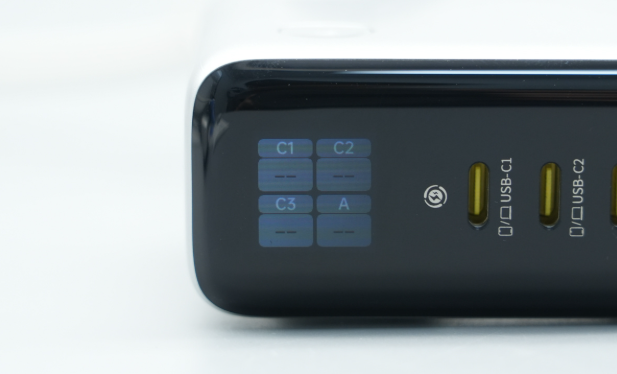

After powering on the charger, the screen first displays the Baseus brand logo, giving a strong sense of ceremony. As a smart 5v usb c charger and a feature‑rich usb c and usb wall charger, this welcome screen sets the tone for a premium experience. The screen supports multi‑port power interface display, which can clearly show the real‑time output power of each port; by double‑clicking the function button, the interface can also be rotated by 90°, ensuring that the data can be easily viewed at various placement angles. This is very useful for monitoring the performance of each port when using it as a 5v usb c charger or a usb c and usb wall charger.

In addition to real‑time power, the screen can also display the output voltage and current of each port in detail, allowing precise control of the charging status. Whether you’re using a 5v usb c charger profile or a higher‑power mode, the voltage and current readings keep you informed. The total power interface can display the total output power of the charger in real time, helping users understand the overall load situation. This is particularly important for a usb c and usb wall charger handling multiple devices.

The working mode interface can feedback the current working state of the charger in real time, allowing users to clearly know the operation status of the device. This real‑time feedback is beneficial for both a 5v usb c charger and a usb c and usb wall charger to ensure everything is running smoothly. It is particularly worth mentioning that the screen also intuitively displays the temperature of the charger during operation in the form of an energy bar. Whether the charging temperature is too high is clear at a glance, achieving temperature visualization and making use more reassuring. Temperature monitoring is a critical safety feature for any 5v usb c charger or usb c and usb wall charger.

Size and Weight: Portability Test

Actual measurement data shows that the length of the charger body is 75.74mm, the width is 59.66mm, and the thickness is 36.02mm. Its compact size makes it a highly portable 5v usb c charger and a space‑saving usb c and usb wall charger. Compared with the Apple 140W charger, its volume advantage is very obvious, making it more convenient to carry when traveling. As a compact 5v usb c charger and a portable usb c and usb wall charger, it easily fits into any bag. In terms of weight, the measured charger is about 248g. The lightweight design further improves portability, and putting it in a backpack daily basically does not add too much burden. This light weight is a significant advantage for both a 5v usb c charger and a usb c and usb wall charger used for travel.

Protocol Compatibility: Adapts to Multiple Devices

Through professional equipment testing, the USB‑C1 port supports various charging protocols such as QC3.0/5, SCP, AFC, PD3.1, PPS, DCP, and Apple 2.4A, with wide compatibility. This extensive protocol support makes it a versatile 5v usb c charger and a highly compatible usb c and usb wall charger. The PDO message shows that the USB‑C1 port has six fixed voltage levels: 5V3A, 9V3A, 12V3A, 15V3A, 20V5A, 28V5A, as well as two PPS voltage levels: 5‑11V5A and 5‑21V5A, which can adapt to devices with different power requirements such as laptops and mobile phones. With the 5V3A PDO, it functions perfectly as a 5v usb c charger, and with higher voltages, it serves as a powerful usb c and usb wall charger.

The USB‑C2 port has exactly the same compatible protocols as the USB‑C1 port, and the PDO message is also the same, with dual‑port performance maximized to meet the simultaneous charging needs of high‑power devices. Both ports can act as a 5v usb c charger or part of a usb c and usb wall charger setup.

The USB‑C3 port supports QC3.0/5, SCP, AFC, PD3.0, PPS, DCP, and Apple 2.4A charging protocols. The PDO message shows that it has five fixed voltage levels: 5V3A, 9V3A, 12V3A, 15V3A, 20V5A, as well as two PPS voltage levels: 5‑11V5A and 5‑20V5A, adapting to most medium and high‑power devices. This makes it a reliable 5v usb c charger and a flexible usb c and usb wall charger.

The USB‑A port supports UFCS, QC3.0, SCP, AFC, and DCP charging protocols. Among them, UFCS fusion fast charging has a voltage level of 5‑11V4A, which is suitable for Android devices that support the UFCS protocol, resulting in higher charging efficiency. When combined with a USB‑C to USB‑C cable, the entire unit works as a complete 5v usb c charger and a multi‑protocol usb c and usb wall charger, ensuring compatibility with a wide range of devices.
